WiseEye™ Solutions
Always watching, sensing and listening by WiseEye™ at the endpoint.
WiseEye™, an AI accelerator-embedded ASIC platform for ultra-low power applications, is designed to develop and deploy convolutional neural networks (CNN)-based machine learning (ML) models on battery-powered AIoT applications.
Sensor fusion applications have brought greater convenience to people’s lives by enabling motion sensing, human presence detection, people counting, face detection, speech recognition, and some other more functions to be applied to predictive maintenance, condition monitoring, asset tracking, and occupancy detection scenarios where power efficiency, bandwidth optimization, and privacy are key requirements.

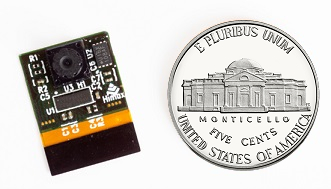

Himax WiseEye Module
The first-generation WiseEye Module incorporates the Company’s proprietary WE1 AI processor and HM01B0 AoS (Always-On Sensor) camera in ultralow power feature. The module is highly integrated and compact in size, measured at just 12.5 mm x 17.0 mm x 2.45 mm (length x width x height) along with 22-pin FPC connector pinouts, which can be easily attached to a device board by standard 24-pin ZIF FPC connector or by standard assembly process for an immediate system integration.
WiseEye1 Series
| Specification | ISM01Q-03M0098 | ISM01Q-03M0198 | ISM01Q-03M00F9 | ISM01Q-03M01F9 |
|---|---|---|---|---|
| Processor | HX6537 (QFN72) | HX6537 (QFN72) | HX6537 (QFN72) | HX6537 (QFN72) |
| Sensor | HM0360-MWB  640×480 | HM0360-MWB 640×480 | HM0360-MWB 640×480 | HM0360-MWB 640×480 |
| Dimension | 20.5mm*21.5mm*4.92mm | 20.5mm*21.5mm*4.92mm | 20.5mm*21.5mm *5.52mm | 20.5mm*21.5mm *5.52mm |
| Lens | 40323A7BB-00 | 40323A7BB-00 | 8090-9009-FF95 | 8090-9009-FF95 |
| FOV | 129.4°(D) x 98.1˚ (H) x 71.8˚ (V) | 129.4°(D) x 98.1˚ (H) x 71.8˚ (V) | 179.5°(D) x159.7˚ (H) x 119.8˚ (V) | 179.5°(D) x159.7˚ (H) x 119.8˚ (V) |
| Feature and Application | Human Body Detection Face Detection Head Pose (yaw, pitch, roll) | People Flow | Occupancy sensing +People counting | Human Body Detection Face Detection Head Pose (yaw, pitch, roll) |
| Connector | 45 pins,0.3mm pitch Golden finger | 45 pins,0.3mm pitch Golden finger | 45 pins,0.3mm pitch Golden finger | 45 pins,0.3mm pitch Golden finger |
WiseEye2 Series

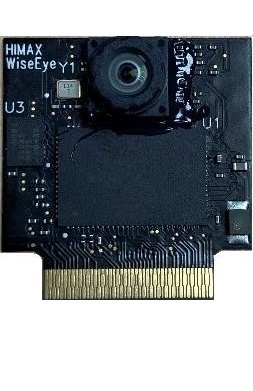

| Specification | ISM028-03M0098 | ISM028-03M0198 |
|---|---|---|
| Processor | HX6538-A06TDFG(QFN-88) | HX6538-A06TDFG(QFN-88) |
| Sensor | HM0360-MWB 640×480 | HM0360-MWB 640×480 |
| Dimension | 20.5mm*21.5mm*4.92mm | 20.5mm*21.5mm*4.92mm |
| Lens | 40323A7BB-00 | 40323A5BB-00 (IR Cuter) |
| FOV | 129.4°(D) x 98.1˚ (H) x 71.8˚ (V) | 129.4°(D) x 98.1˚ (H) x 71.8˚ (V) |
| Feature and Application | Human Body Detection Face Detection Head Pose (yaw, pitch, roll) | Occupancy detection for parking |
| Connector | 45 pins,0.3mm pitch Golden finger | 45 pins,0.3mm pitch Golden finger |
WiseEye™ seamlessly integrates Himax’s proprietary ultralow power AI processors, always-on CMOS image sensors, and advanced CNN-based AI algorithms, revolutionizing battery-powered, on-device vision AI applications. With power consumption of just a few milliwatts, WiseEye™ targets battery-powered endpoint AI device markets to drive AI for everyday life. Such devices typically demand extended battery life to minimize maintenance and enhance usability. WiseEye™ delivers intuitive and intelligent user interactions, making advanced AI sensing possible even in power-constrained environments. By bringing advanced, user-friendly AI capabilities, WiseEye™ sets a new standard for endpoint AI, offering unmatched performance and extended operational lifetimes.
Turnkey Solutions
WiseEye™ is the product trademark for Himax’s proprietary turnkey solution composed by Himax AoS image sensor, AI processor (WE1 Plus, WE2…) and algorithm from Himax in-house team or third-party algorithm providers
Smart Home Appliance
AI-Controlled TV
Intelligent human/face detection, face recognition and voice command control in WiseEye™ makes TV a smart interactive home appliance.
AI-Controlled Air Conditioner
WiseEye™ provides best-fit solution for Smart AI-Controlled air conditioner in enabling accurate and long-distance human/motion detection and voice command control functions.
Intelligent Home Security & Safety
Intelligent Smart Door Lock
WiseEye™ offers ultralow power face detection and voice command features and greatly extends battery life for smart door lock application.
Intelligent Surveillance
Intelligent surveillance application requires fast response and ultra-long battery life which WiseEye™ could achieve these tough targets by running ultralow power motion/human/face detection and people counting.
