HM1091 HD Sensor for Slim and Low Profile Camera Applications
1280 x 720 30FPSMAX 1/9″ MIPI
Himax Imaging HM1091 is a highly compact 1/9” 720P High Definition CMOS Image Sensor designed for embedded camera modules used in narrow bezel laptop computers and smart devices. The sensor utilizes Himax Imaging’s most advanced UltraSense™ BSI pixel that achieves low noise and high sensitivity performance to deliver exceptional image quality and video experience.
The HM1091 has an active array of 1280 x720 and operates up to 30 frames per second (FPS) in full resolution and 60FPS in subsampling and binning mode. The pixel data is transferred over MIPI-CSI2 interface with support for Spread Spectrum Clock Generation.
To meet the tight space requirements of narrow bezel panels, the HM1091 is available in an extremely small CSP and bare die package option. The bare die bond pads are located only on left and right side of the sensor to support narrow camera module dimensions.

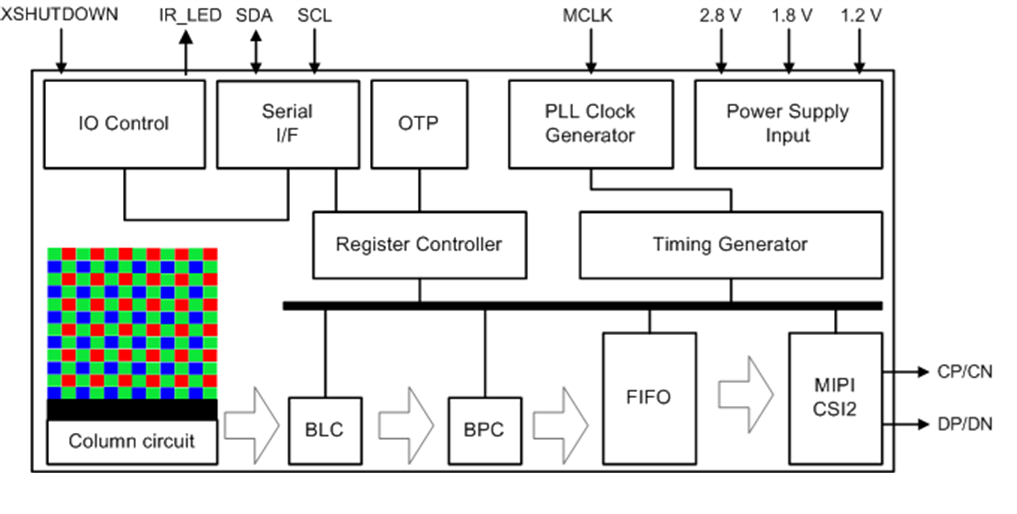

影象传感器特色
- High performance 720p HD Backside Illuminated CIS
- 30FPS in 720p HD resolution, 60FPS in VGA resolution
- Supports 33.7° CRA for compact, low profile camera module design
- Spread Spectrum Clock Generator (SSCG) on MIPI DPHY reduces EMI
- <65mW power consumption at 30FPS using 2.8V and 1.8V
- Integrated single-pixel defect correction
- 1-lane MIPI CSI2 supports RAW8/10 data format
- Provide LED control signal to sync with rolling shutter exposure
- Simple 2-wire serial interface for register programming
- Available in CSP and Bare Die (RW) package
影象传感器参数
Active Pixel Array | 1280 x 720 |
Pixel Size / Technology | 1.4 µm x 1.4 µm / BSI |
Diagonal (Optical Format) | 2.08 mm (1/9″) |
Color Filter Array | Bayer |
Frame Rate | 30FPS HD |
Readout Modes | Full (HD), Sub / Bin |
S/N RatioMAX | 37dB |
Sensitivity | 720mV / Lux-sec @ 530nm |
CRA (maximum) | 33.7º |
影象传感器规格
Supply Voltage Analog Supply Voltage Digital Supply Voltage I/O | 2.8 V 1.2V (1.8V LDO option) 1.8 / 2.8V |
Reference Clock (EXTCLK) | 6 – 27 MHz |
Serial Interface | I2C (400kHz max.) |
MIPI Data Format | 10b |
Power Consumption HD 30FPS Power Consumption SHUTDOWN | 64.57 mW 18 µW |
Package | CSP, RW |
